MindTag (UWB Tag)

  • Posted on: 22 June 2018
  • By: admin
$169.00
Image:

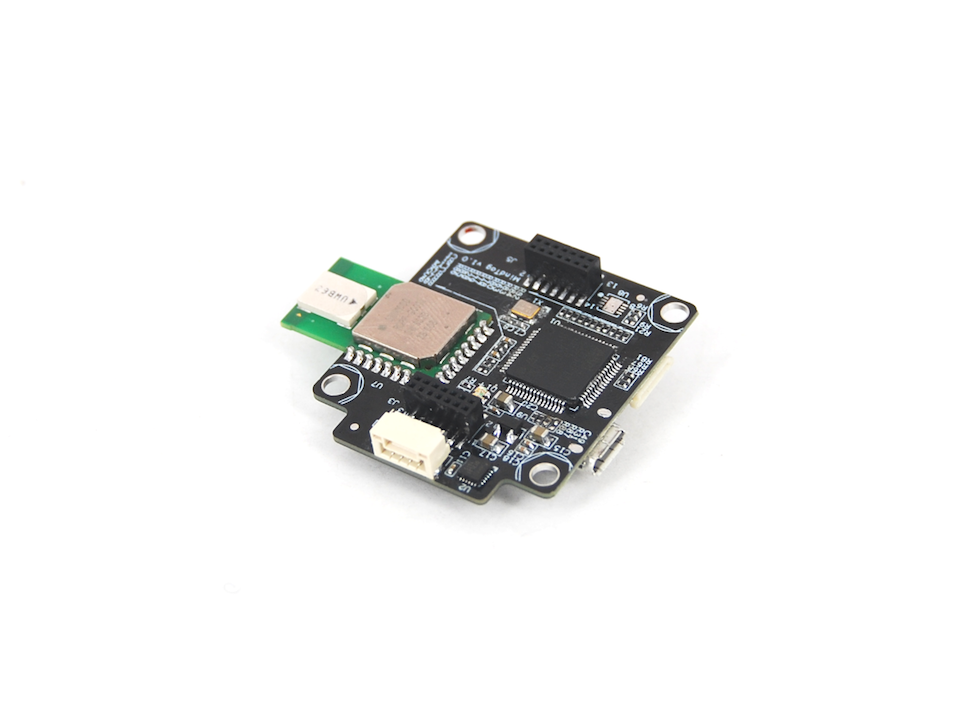

UWB local positioning tag, can be mounted on NanoMind, or stack with any other MindRacer based drones.

Hardware specification
1. STM32F105 processor
2. 3GHz ~ 6.5GHz UWB transceiver with onboard chip antenna
3. MPU9250 9-axies IMU (accel + gyro + compass)
4. Interface: I2C, UART (JST GH)
Micro-USB
DEBUG (JST SSH)
5. Dimension: 35 x 35 mm (30.5mm mounting holes)
6. Weight: ~6g
7. MindRacer compatible WEP socket for expansion

In Package
- MindTag board x 1
- M3*7+6 hexagon stud x 4

Recommended Accessories (not in default package, need to buy separately)
- USB-to-Serial Debug cable Buy>
Debug cable

SKU: MTAGUD100S1
Weight: 6 g
Dimensions: 35 mm × 35 mm × 1 mm
