USB-to-Serial Debug cable

  • Posted on: 12 March 2018
  • By: admin
$16.00
Image:

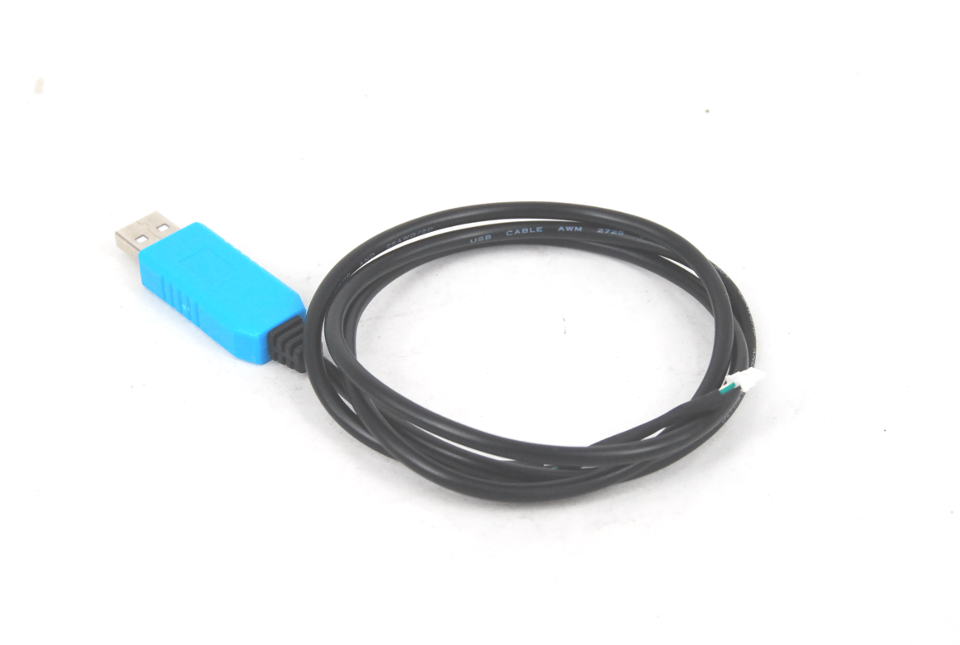

USB-to-Serial debug cable for MindRacer, MindTag, and other compatible boards.
This cable includes embedded USB-Serial convertor chip inside, with SSHL connector that can be directly plug into MindRacer's debug port.
The cable can be used to get debug information output through a virtual serial port/tty for MindRacer, MindTag and other compatible board's firmware.

Specification
Length: 85cm
Connector: USB-A (PC end), SHL male 3-wire (flight controller end)
Chipset: PL2303 USB-to-Serial convertor chip
Input: 5V DC (USB)
Output: No power supply on line

Weight
20g

Drivers
Drivers available for Linux/MacOS/Windows. Download from here.

Setup
Please note that this cable does not provide power supply over the line. It is always recommended to power the flight controller through another independent power source (i.e., through USB socket, as shown in below's picture), because in-correct power supply voltage over the line can easily burn processor core.

Debug cable

SKU: CUTSJL380
Weight: 20 g
Dimensions: 85 cm × 0.05 cm × 0.05 cm
