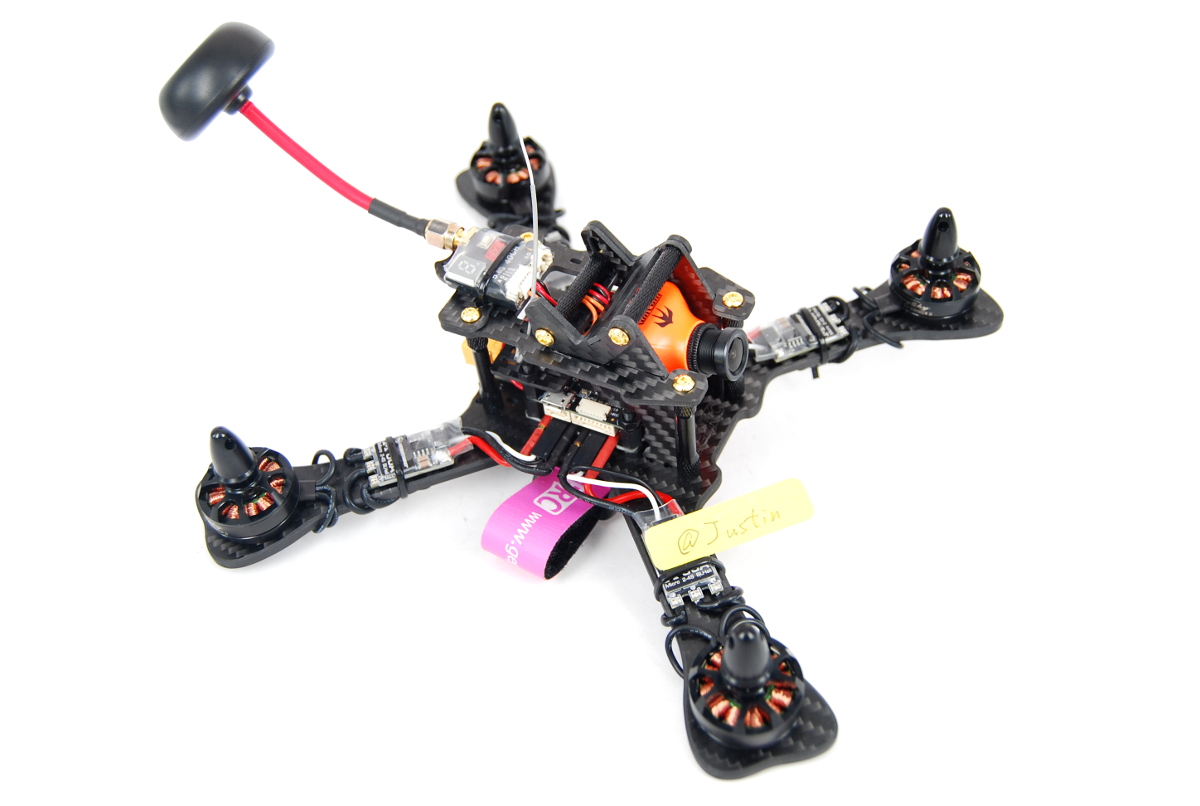

MindRacer 210mm Racing Quad (BNF - bind and fly)

Or you can buy on eBay >

Summary
10:1 thrust-to-weight ratio MindPX/PX4 racing beast !

Specification
1. GEP Chimp 210mm carbon fiber frame
2. MindRacer V1.2 mainboard, support OneShot ESC
3. soldering-free, stackable MRPDB, with 5V output.
4. XRotor 30A ESC / BLHeli
5. SunnySky 2204/2300KV BLDC x 4
6. 5" propeller x 4
7. receiver
8. Weight 254g (w/o battery)
9. compatible with 4S battery (4S 1300mah recommended)
10. 600TL FPV camera
11. 200mw 5.8GHz video transmitter
12. DroneCode compliant JST GH connector
Full specification >

In package list
1. 210mm unibody carbon frame x 1
2. MindRacer V1.2 mainboard x 1
3. MRPDB x 1
4. 5" propeller x 4
5. 2204 motor x 4
6. 30A BLHeli ESC x 4
7. receiver x 1
8. M3*7+6 x 8
9. FPV camera x 1
10. 5.8GHz video transmitter x 1
11. female bullet header x 8, male bullet header x 8;

Spare parts (not in default package, need to buy separately)
- Spare propeller pack - 5" 5030 Buy >
- Spare 11.V 3S battery Buy

Recommended accessories (not in default package, need to buy separately)
- USB-to-Serial Debug cable for MindRacer Buy>

Gallery
