e-switch Power V1.2

  • Posted on: 29 June 2016
  • By: admin
$20.00
Image:

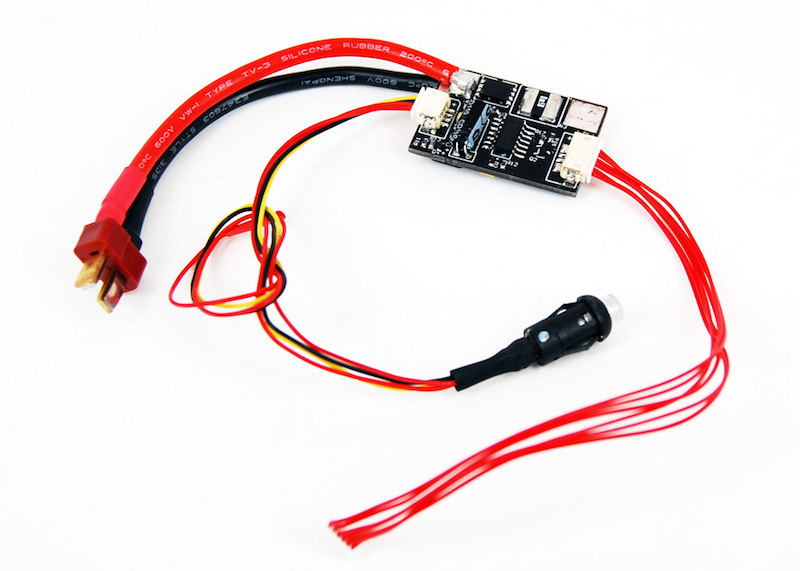

A flexible power module with electronic switch button for drone.

Specification

Dimension: 36x24mm
Input: 3~18V (2~4S)
Output voltage rating: 5.0 ~ 5.4V
Output current rating: 40A (60A peak)

Usage
Short click to turn on, long press (>3 seconds) to cut off the power.

back side
battery connection

SKU: eps12
Weight: 5 g
Dimensions: 36 mm × 24 mm × 5 mm
