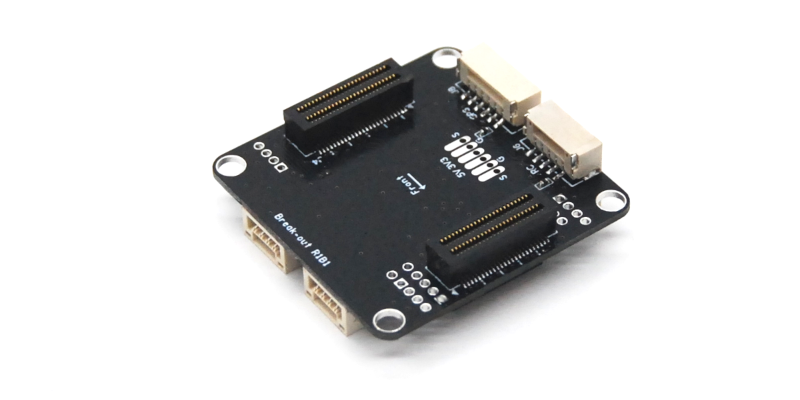

WEP2 breakout board
$9.00
Image:
![](https://airmind.mindpx.net/sites/default/files/breakout_top3.png)
Technical documents
Datasheet (PDF)
Pin map table (xlsx)
I/O port expanded from WEP2 socket
- TELEM1
- GPS
- RC input
- I2C4
- CAN
- BUZZ & Heater
Soldering pads
- PWM output AUX channel 1~6, FMU channel 1~6
- 5V input
- Battery voltage/current sense
SKU: WBR1B1
Weight: 4 g
Dimensions: 35 mm × 35 mm × 9 mm
